SQLite Tables

Menu: Database → SQLite Tables
Deep link: /_Admin/database/sqlite-table?SiteId={siteGuid}

SQLite tables manage tables in the site’s built-in SQLite database: create tables, maintain columns and data, and import / export CSV in the admin. No separate connection string is required; scripts use k.DB.sqlite to run SQL or access table objects.

Permissions

Same as IndexedDB tables: database (view), database·edit, database·delete.

Difference from IndexedDB tables

	SQLite tables	IndexedDB tables
Engine	Site SQLite file	Site IndexedDB dynamic tables
Setup	Works out of the box	Works out of the box
Column settings	No primary key / unique columns in the UI; no numeric auto-increment option	Primary key, unique, auto-increment supported
Data page	Has Import data (CSV)	No CSV import
Script	k.DB.sqlite.query / execute / getTable	k.DB.indexedDb.{tableName}
Table relations	Does not support table relations (IndexedDB only)	Supported

Column editing and data browsing share routes with IndexedDB but require query parameter dbType=Sqlite; the left menu highlights SQLite Tables.

How to Open

1. In Edit Menu, check Database → SQLite Tables.
2. Open Database → SQLite Tables in the left sidebar.

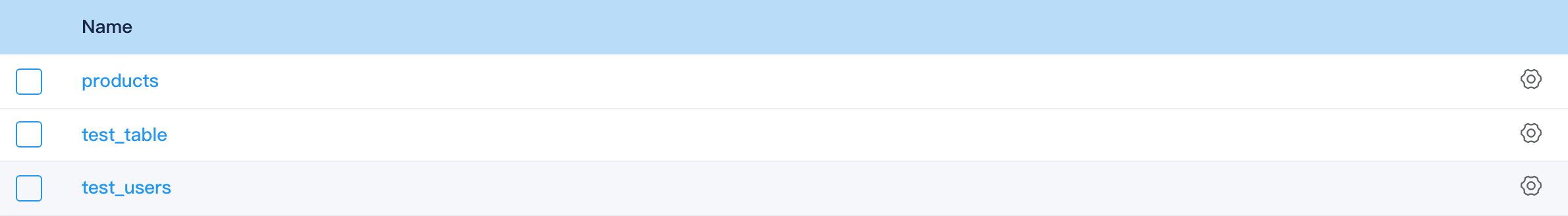

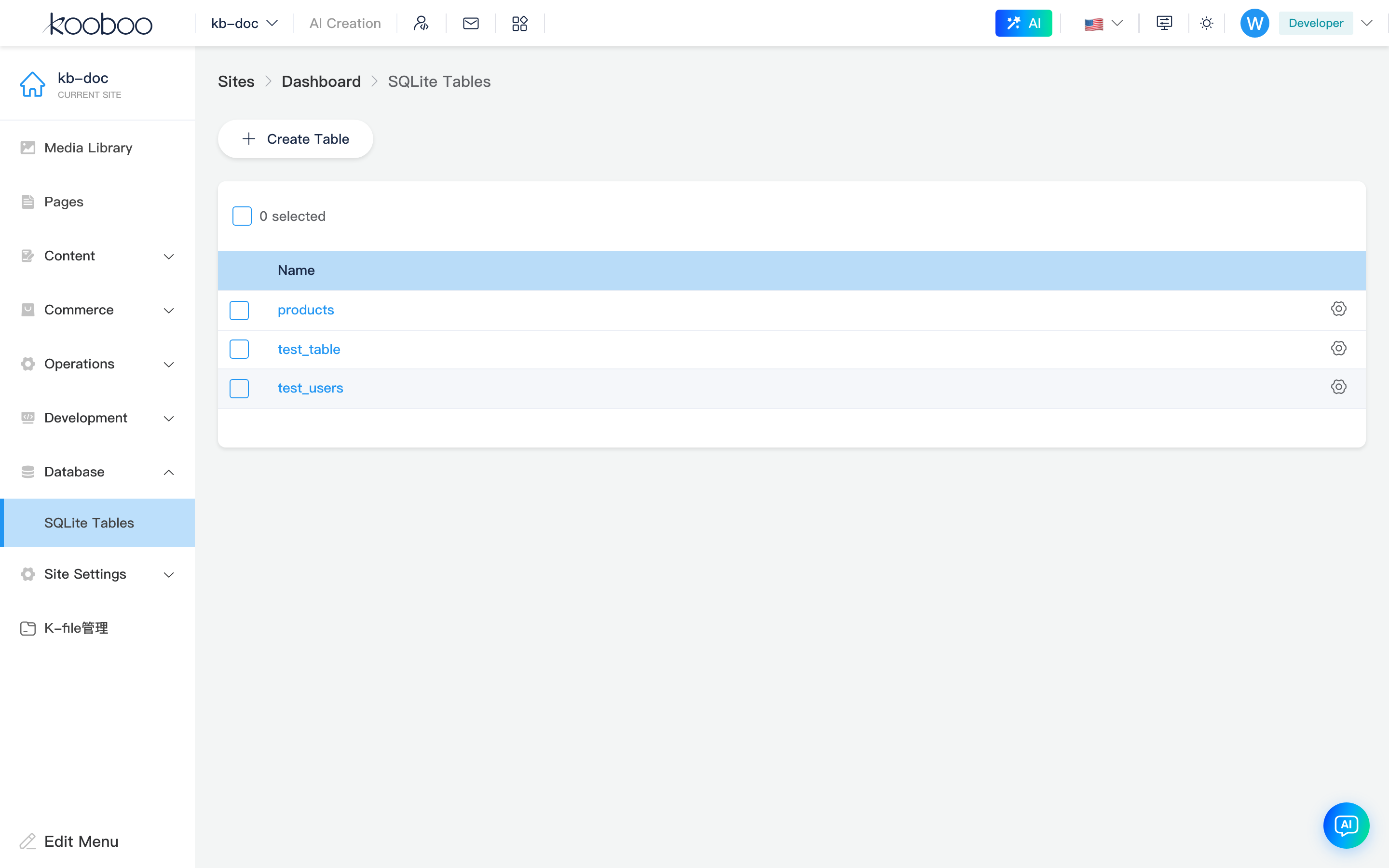

Table List

The UI matches IndexedDB tables: Create table, click Name for data, Settings for column definitions, multi-select delete.

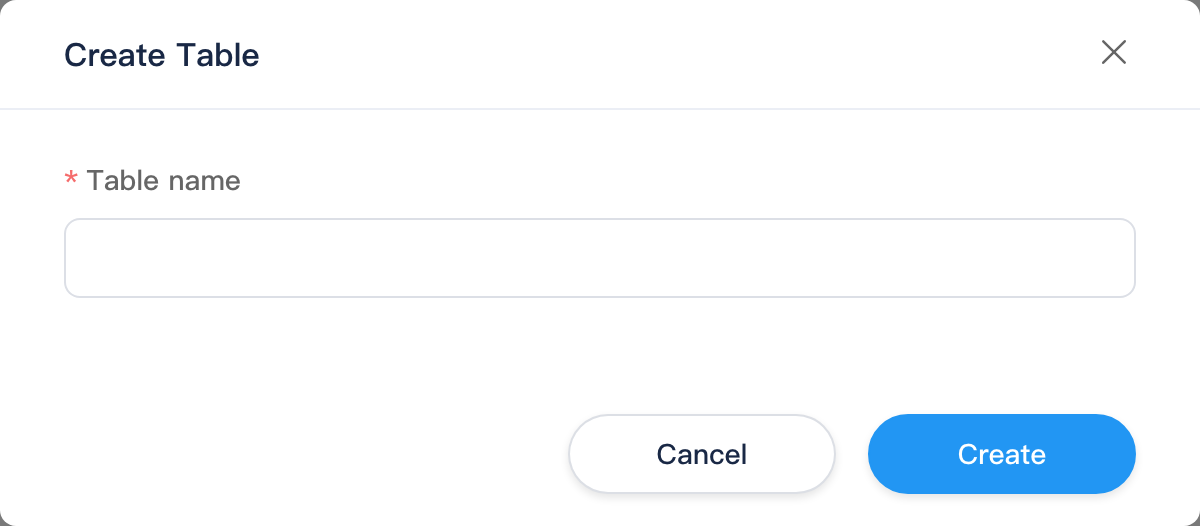

Create table dialog

Table name rules match IndexedDB: 1–50 characters, letter or digit start, letters and digits only, unique within the site. Creates a physical table in SQLite and registers the admin column schema.

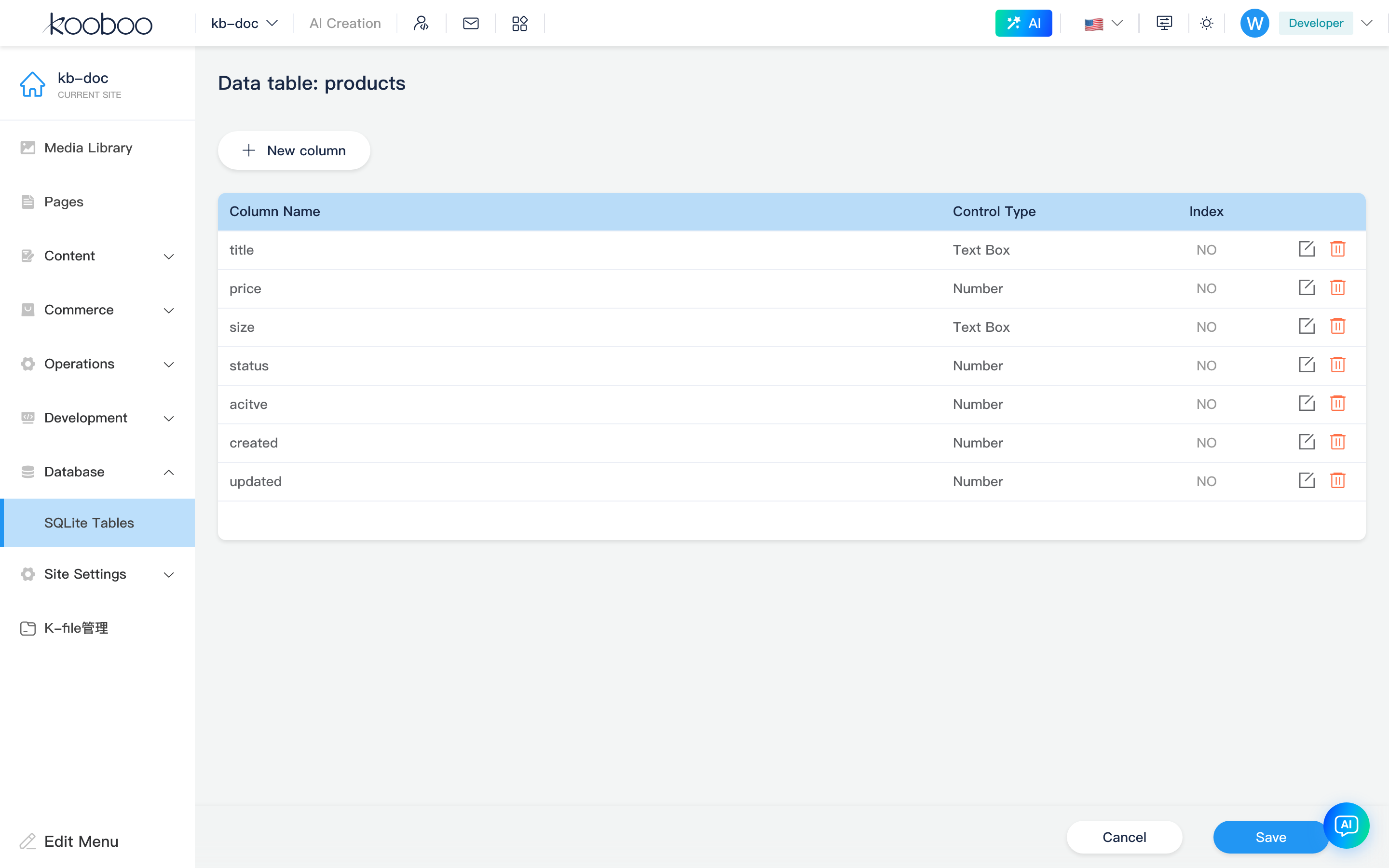

Column Settings

Route example:

/_Admin/database/table/columns?SiteId={siteGuid}&table={tableName}&dbType=Sqlite

Opening from the SQLite list automatically adds dbType=Sqlite to the address bar.

Difference from IndexedDB column settings	Description
List columns	Shows column name, control type, index; does not show primary key / unique

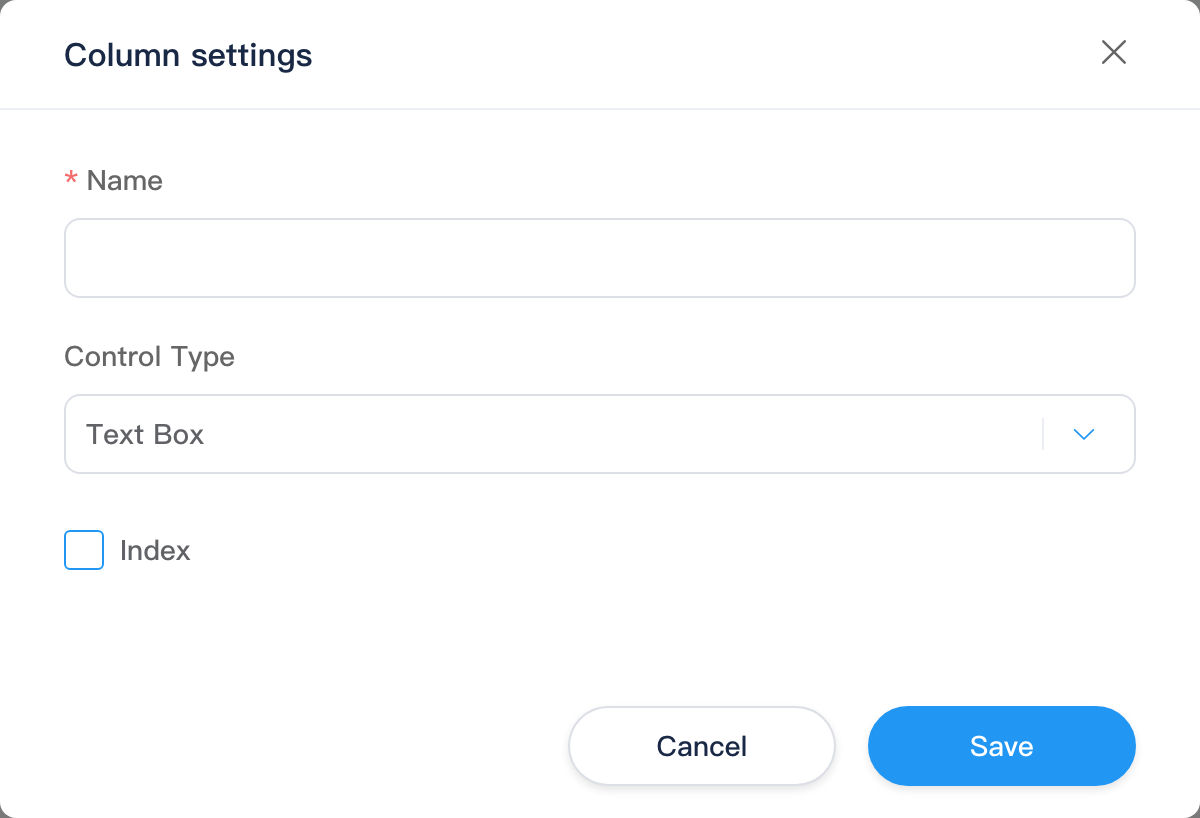

Column editor dialog	No length (text), no auto-increment, no primary key / unique checkboxes
Save	Updates SQLite table structure and admin schema mapping

Control types (text box, textarea, rich text, select, boolean, date-time, number, etc.) match IndexedDB and determine Edit data form styling.

Table Data

Route example:

/_Admin/database/table/data?SiteId={siteGuid}&table={tableName}&dbType=Sqlite

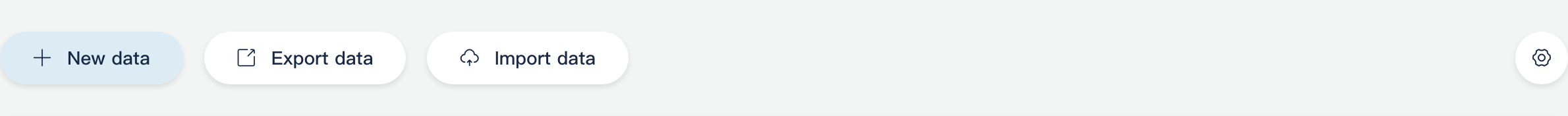

Toolbar

Button	Permission	Description
New data	database·edit	Open edit page to create a row
Export data	database (view)	Export CSV (current sort; large exports may use a larger page size internally)
Import data	database·edit	Open CSV import
Settings	—	Jump to column settings

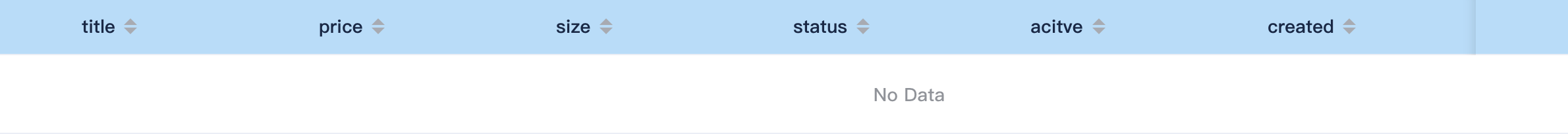

Data table

Default pagination 30 rows per page; sortable column headers (sort preference saved locally in the browser); row Edit and multi-select Delete. Display rules when hiding internal columns like _id match the IndexedDB data page.

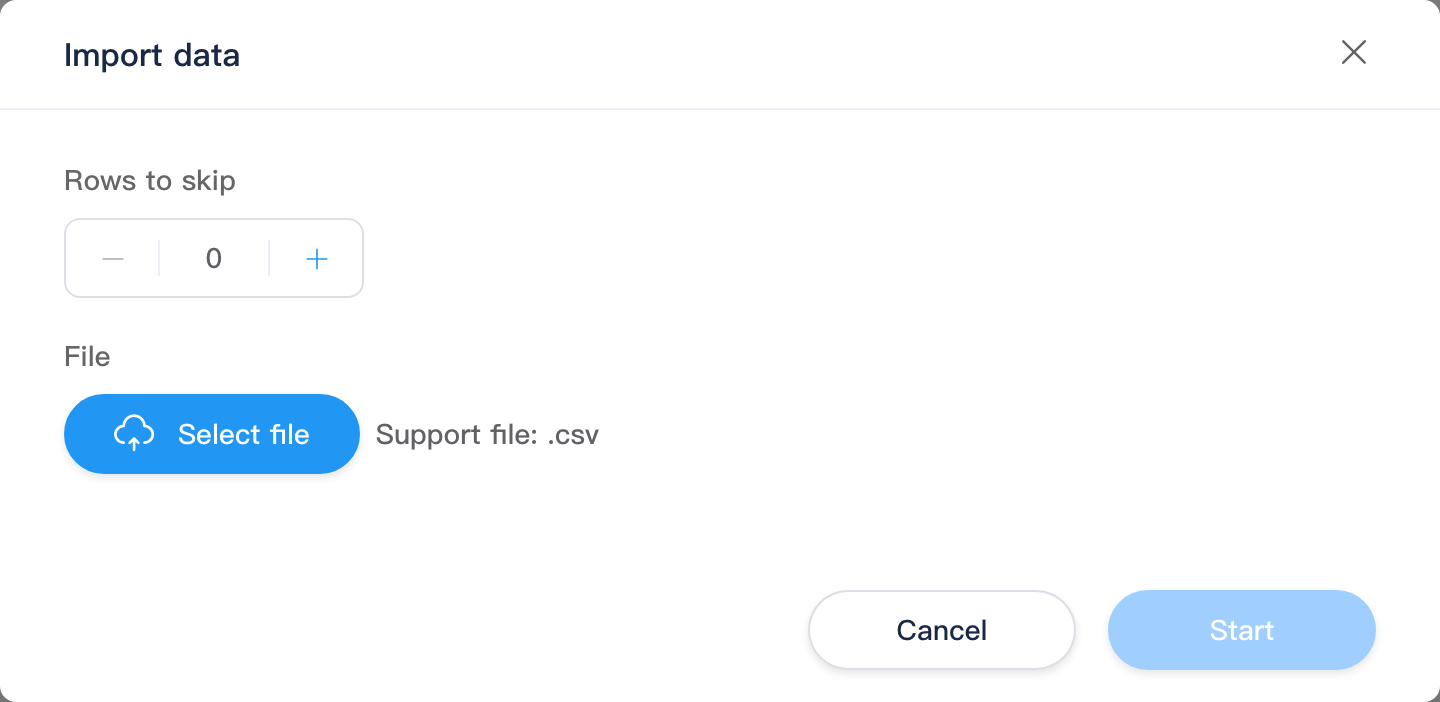

CSV import

Step / field	Description
Skip rows	Number of rows to skip at file start (e.g. 1 if the CSV header is one row)
File	Upload a .csv file; server parses columns and sample rows
Field mapping	Map database fields to CSV columns; optional Required and Unique
Overwrite	When a unique mapping hits an existing row, enable to update in place

Confirm Start to batch write; the data table refreshes when complete.

Edit Data

Route example:

/_Admin/database/table/edit-data?SiteId={siteGuid}&table={tableName}&dbType=Sqlite

Form rendered by column control type; Save / Cancel returns to the table data list. No id query parameter when creating.

Script access (development)

SQLite is primarily SQL and table objects, for example:

k.DB.sqlite.execute(
  "CREATE TABLE IF NOT EXISTS logs (id INTEGER PRIMARY KEY, msg TEXT)"
)
const rows = k.DB.sqlite.query("SELECT * FROM logs WHERE id = @id", { id: 1 })
const table = k.DB.sqlite.getTable("logs")

See k.DB.sqlite. Tables created in Code with execute / query can also be maintained in the admin after refreshing the SQLite Tables list (must follow table name rules).

SQL logs

SQL execution records appear in SQL logs when site logging is enabled.

Typical workflow

1. Create table or CREATE TABLE in script, then sync by seeing the table name on this page.
2. Define columns in Settings, or rely on SQL columns from script-created tables.
3. New data, Import CSV, or script INSERT to write rows.
4. Troubleshoot with SQL logs and k.DB.sqlite.query.
