MySQL Tables

Menu: Database → MySQL Tables
Deep link: /_Admin/database/mysql-table?SiteId={siteGuid}

MySQL tables let you browse and manage tables in an connected external MySQL database from the admin: create tables, maintain columns and data, and import / export CSV. Configure the Mysql connection string under Service integrations first; scripts use k.DB.mysql for SQL or table objects. Child routes must include dbType=MySql; the left menu highlights MySQL Tables.

Permissions

Same as SQLite tables: database (view), database·edit, database·delete.
Configuring the connection string requires Service integrations config·edit.

Difference from SQLite tables

	MySQL tables	SQLite tables
Data source	External MySQL (connection string)	Site built-in SQLite file
Prerequisite	Service integrations Database → Mysql	No configuration
When not configured	Guided page + Configure now	Lists tables directly
Column / data UI	Same as SQLite (no primary key/unique columns; has CSV)	Same
Script	k.DB.mysql	k.DB.sqlite
SQL log type	mysql	sqlite

Column editing and data browsing share views/database/table/* routes with IndexedDB / SQLite.

Configure MySQL connection

1. Open Site settings → Service integrations: /_Admin/system/config?SiteId={siteGuid}
2. Expand the Database group and edit Mysql. See Service integrations · Database.
3. Enter the connection string (ConnectionString) and save.

Example format (follow Kooboo built-in guidance):

Server=myServerAddress;Port=3306;Database=myDataBase;Uid=myUsername;Pwd=myPassword;

You can also click Configure now on the MySQL Tables unconfigured guide page to jump to /_Admin/system/config?SiteId={siteGuid}&group=Database (Database group expanded automatically).

Security

Connection strings contain credentials; do not commit them to public repositories. Use least-privilege database users in production.

How to Open

1. In Edit Menu, check Database → MySQL Tables.
2. Complete Configure MySQL connection.
3. Open Database → MySQL Tables in the left sidebar.

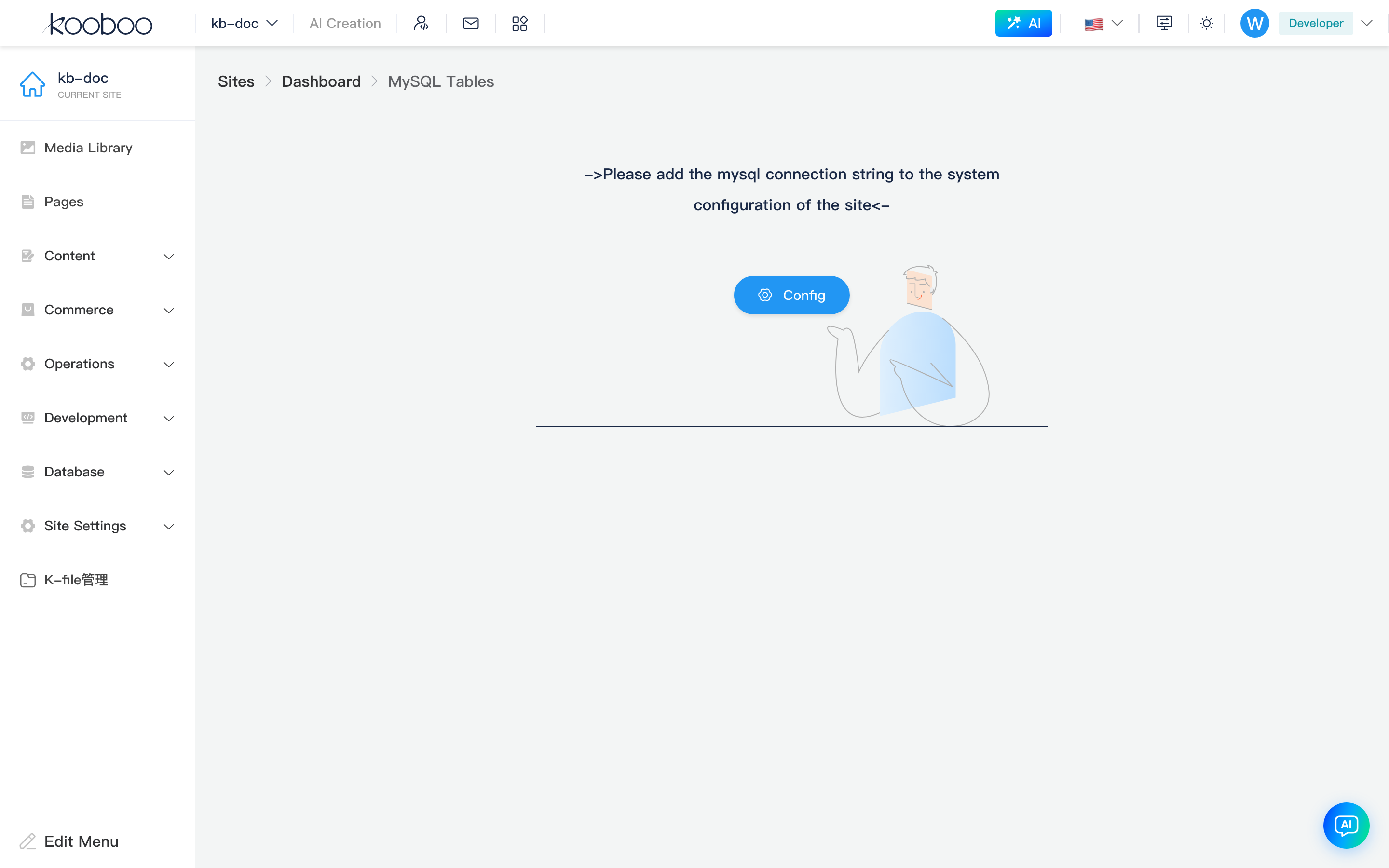

When not configured or the connection is invalid, the page shows an error and Configure now; no table list is shown.

After a successful connection, list, columns, data, CSV import, and other UIs share the same pages as SQLite tables (only dbType=MySql and menu highlight differ). Screenshots below use SQLite as an example; MySQL looks the same once configured.

Table List

Action	Permission	Description
Create table	database·edit	Create table in MySQL and register admin schema
Click Name	database	Open table data
Settings (gear)	database	Open column settings
Multi-select Delete	database·delete	Delete selected physical tables (use with care)

Table name rules match IndexedDB / SQLite: 1–50 characters, letter or digit start, letters and digits only.

Create table dialog

Column Settings

Route example:

/_Admin/database/table/columns?SiteId={siteGuid}&table={tableName}&dbType=MySql

Same as SQLite column settings: list shows column name, control type, index (no primary key/unique columns); column editor has no length, auto-increment, or primary key/unique (IndexedDB only). Save updates MySQL table structure and admin control mapping.

Table Data

Route example:

/_Admin/database/table/data?SiteId={siteGuid}&table={tableName}&dbType=MySql

Toolbar

Button	Permission	Description
New data	database·edit	Open edit page
Export data	database	Export CSV
Import data	database·edit	CSV import
Settings	—	Jump to column settings

CSV import

Fields and flow match SQLite CSV import: skip rows, upload .csv, field mapping (required/unique), optional overwrite.

Edit Data

Route example:

/_Admin/database/table/edit-data?SiteId={siteGuid}&table={tableName}&dbType=MySql

Form rendered by column control type; Save / Cancel returns to the data list.

Script access (development)

const rows = k.DB.mysql.query(
  "SELECT * FROM orders WHERE id = @id",
  { id: 1 }
)
k.DB.mysql.execute(
  "INSERT INTO orders (order_no, amount) VALUES (@no, @amt)",
  { no: "A1001", amt: 99 }
)
const table = k.DB.mysql.getTable("orders")

When Default database under Site settings → Advanced is set to Mysql, k.DB.sql and k.DB.mysql point to the same instance.

See k.DB (mysql and sqlite share relational APIs: query / execute / getTable, etc.).

SQL logs

With site SQL logging enabled, statements from k.DB.mysql can be filtered by type MySQL in SQL logs.

Typical workflow

1. Configure Mysql under Service integrations and verify connectivity.
2. Open MySQL Tables, Create table or sync existing database tables (tables already in the database appear in the list).
3. Settings for columns and control types; New data or Import CSV.
4. Read/write in Code with k.DB.mysql; check SQL logs when troubleshooting.

Related

Doc	Description
SQLite tables	Built-in database; no connection
SQL Server tables	Similar external database
k.DB	Script API
SQL logs	Execution records
Database overview	Menu overview
