SQL Server Tables

Menu: Database → SQL Server Tables
Deep link: /_Admin/database/sqlserver-table?SiteId={siteGuid}

SQL Server tables let you browse and manage tables in a connected external SQL Server database from the admin: create tables, maintain columns and data, and import / export CSV. Configure the SqlServer connection string under Service integrations first; scripts use k.DB.sqlServer for SQL or table objects. Child routes must include dbType=SqlServer; the left menu highlights SQL Server Tables.

Permissions

Same as SQLite tables: database (view), database·edit, database·delete.
Configuring the connection string requires Service integrations config·edit.

Difference from MySQL / SQLite

	SQL Server tables	MySQL tables	SQLite tables
Data source	External SQL Server	External MySQL	Site built-in SQLite
Service integration item	Database → SqlServer	Database → Mysql	Not required
dbType	SqlServer	MySql	Sqlite
Script	k.DB.sqlServer	k.DB.mysql	k.DB.sqlite
SQL log type	sqlserver	mysql	sqlite

Column editing and data browsing share the same pages as MySQL tables and SQLite tables (relational DB UI is consistent; only IndexedDB column settings include primary key/unique/auto-increment).

Configure SQL Server connection

1. Open Site settings → Service integrations: /_Admin/system/config?SiteId={siteGuid}
2. Expand the Database group and edit SqlServer. See Service integrations · Database.
3. Enter the connection string (ConnectionString) and save.

Example format (follow Kooboo built-in guidance):

Data Source=127.0.0.1;Initial Catalog=mydb;User ID=sa;Pwd=123

You can also click Configure now on the SQL Server Tables unconfigured guide page to jump to /_Admin/system/config?SiteId={siteGuid}&group=Database.

Security

Connection strings contain credentials; do not commit them to public repositories. Use least-privilege database users in production. Kooboo applies common TLS certificate options when connecting (e.g. TrustServerCertificate); exact behavior depends on the deployment driver.

How to Open

1. In Edit Menu, check Database → SQL Server Tables.
2. Complete Configure SQL Server connection.
3. Open Database → SQL Server Tables in the left sidebar.

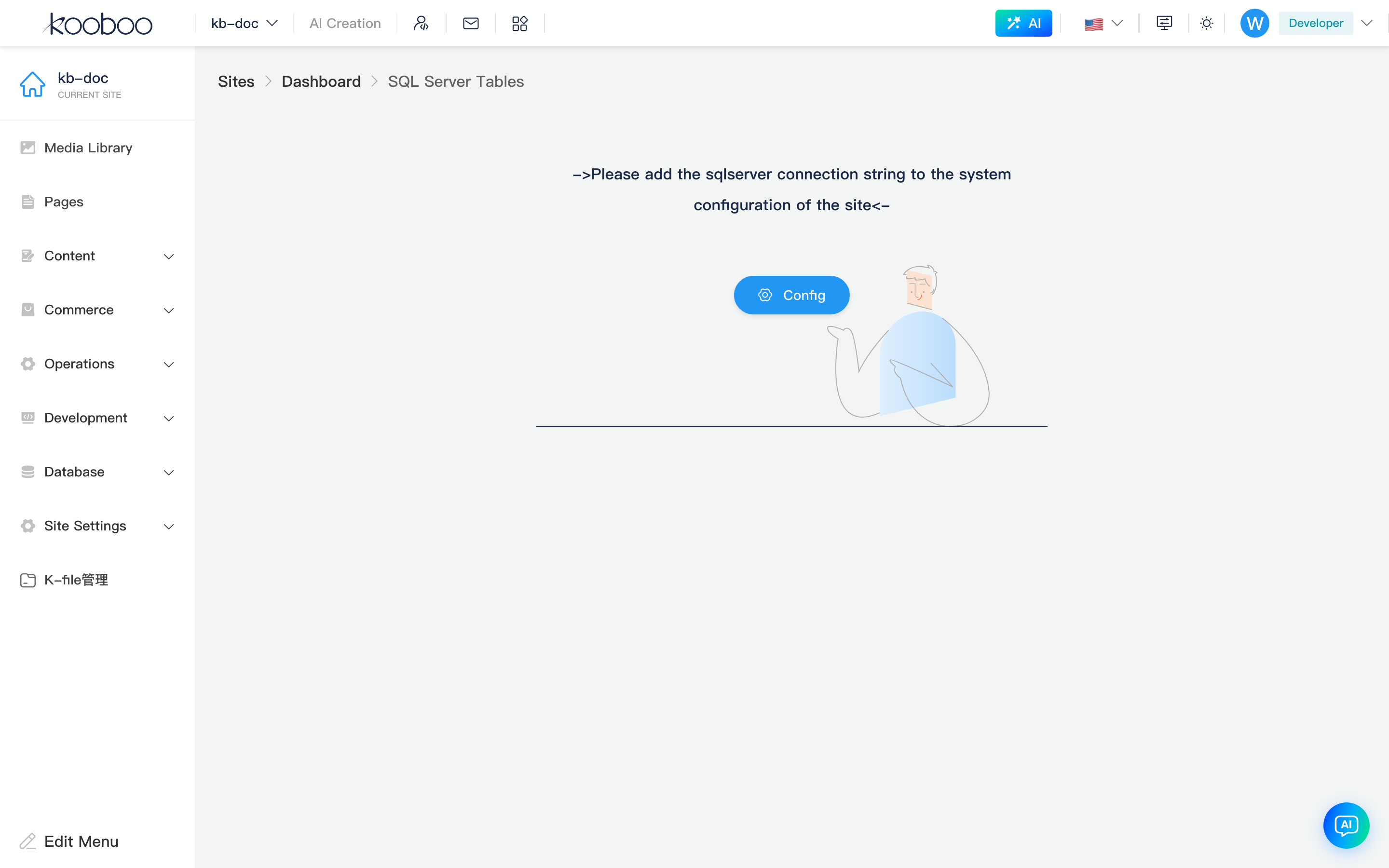

When not configured or the connection is invalid, the page shows an error and Configure now; no table list is shown.

After a successful connection, list, columns, data, CSV import, and other UIs share the same pages as SQLite tables (only dbType=SqlServer and menu highlight differ). Screenshots below use SQLite as an example; SQL Server looks the same once configured.

Table List

Action	Permission	Description
Create table	database·edit	Create table in SQL Server and register admin schema
Click Name	database	Open table data
Settings (gear)	database	Open column settings
Multi-select Delete	database·delete	Delete selected physical tables (use with care)

Table name rules match IndexedDB / SQLite: 1–50 characters, letter or digit start, letters and digits only.

Create table dialog

Column Settings

Route example:

/_Admin/database/table/columns?SiteId={siteGuid}&table={tableName}&dbType=SqlServer

Same as SQLite column settings: list shows column name, control type, index; column editor has no length, auto-increment, or primary key/unique (IndexedDB only). Save updates SQL Server table structure and admin control mapping.

Table Data

Route example:

/_Admin/database/table/data?SiteId={siteGuid}&table={tableName}&dbType=SqlServer

Toolbar

Button	Permission	Description
New data	database·edit	Open edit page
Export data	database	Export CSV
Import data	database·edit	CSV import
Settings	—	Jump to column settings

CSV import

Fields and flow match SQLite CSV import: skip rows, upload .csv, field mapping (required/unique), optional overwrite.

Edit Data

Route example:

/_Admin/database/table/edit-data?SiteId={siteGuid}&table={tableName}&dbType=SqlServer

Form rendered by column control type; Save / Cancel returns to the data list.

Script access (development)

const rows = k.DB.sqlServer.query(
  "SELECT * FROM orders WHERE id = @id",
  { id: 1 }
)
k.DB.sqlServer.execute(
  "INSERT INTO orders (order_no, amount) VALUES (@no, @amt)",
  { no: "A1001", amt: 99 }
)
const table = k.DB.sqlServer.getTable("orders")

When Default database under Site settings → Advanced is set to SqlServer, k.DB.sql and k.DB.sqlServer point to the same instance.

See k.DB (sqlServer shares relational APIs with mysql / sqlite: query / execute / getTable / procedure, etc.).

SQL logs

With site SQL logging enabled, statements from k.DB.sqlServer can be filtered by type SQLServer in SQL logs.

Typical workflow

1. Configure SqlServer under Service integrations and verify connectivity.
2. Open SQL Server Tables, Create table or manage existing database tables.
3. Settings for columns and control types; New data or Import CSV.
4. Read/write in Code with k.DB.sqlServer; check SQL logs when troubleshooting.
