Open API

Menu: Development → Open API
Deep link: /_Admin/development/openapis?SiteId={siteGuid}

Import external OpenAPI (Swagger) documents into the site, configure auth credentials and response cache, and call remote HTTP APIs in KScript via k.openApi.{name}. Unlike Swagger generated for this site in Code (codeOpenApi): this feature aggregates third-party APIs.

Permissions

List: openApi (view). Create, edit definitions and authorizations, Update document (URL type) require openApi·edit; multi-select Delete requires openApi·delete.

vs k.net

Approach	Use when
Open API (this page)	Existing OpenAPI spec, OAuth/API Key, call by operation name, cacheable
k.net.httpClient	Hand-written URL, headers, no spec document

How to Open

1. In Edit Menu, enable Development → Open API.
2. Open Development → Open API in the left sidebar.

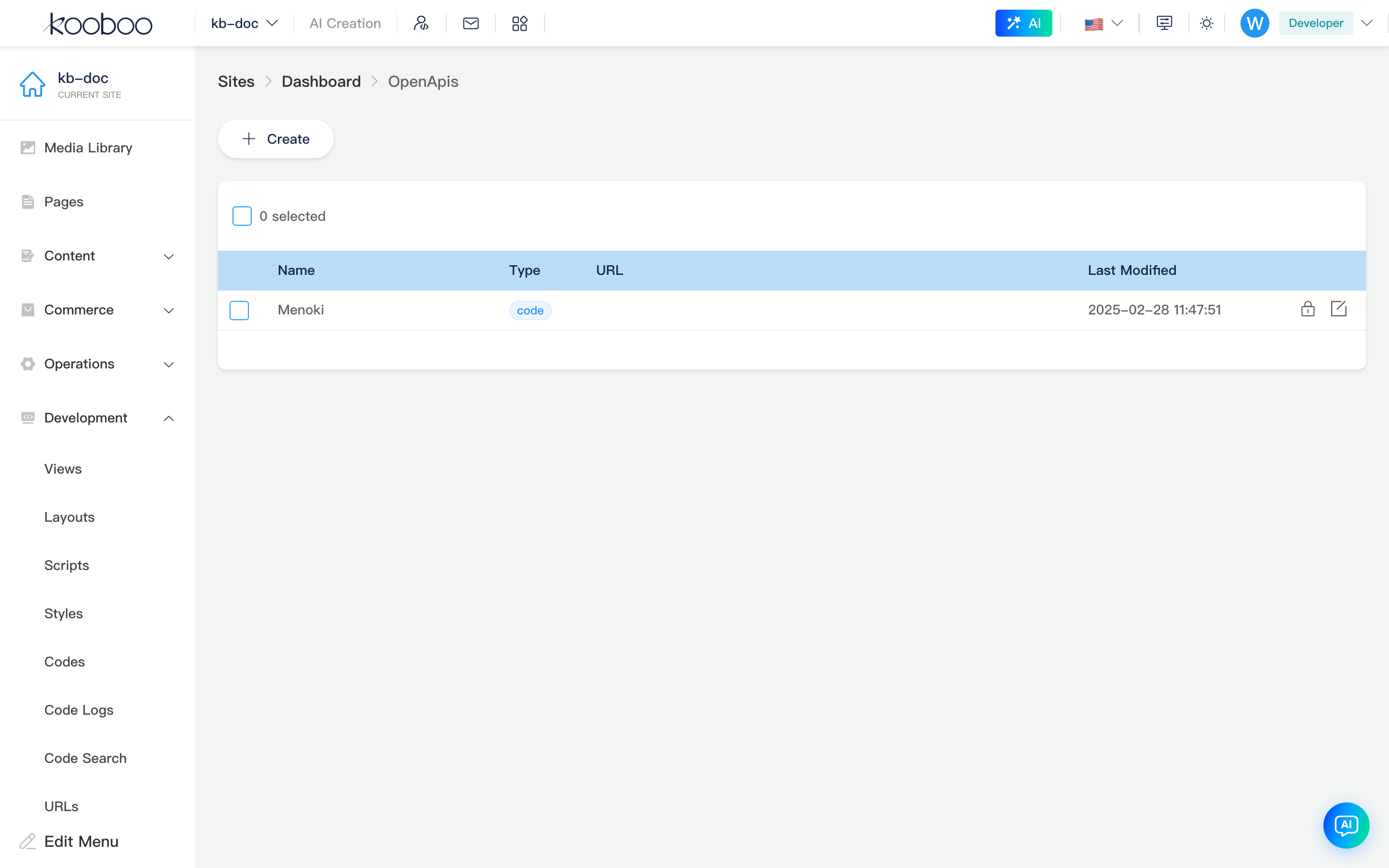

Definition list

Toolbar

Button	Permission	Description
Create	openApi·edit	Enter edit Open API (new)

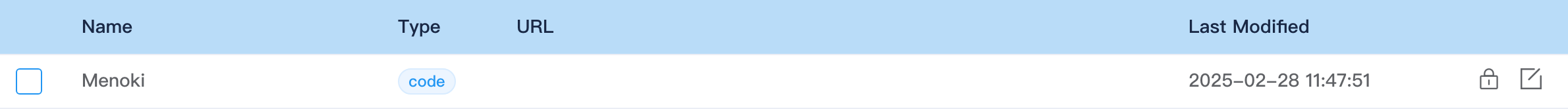

List table

Column	Description
Name	Unique id; cannot rename after save; maps to k.openApi.{name} in scripts
Type	url / code / template (see edit page types)
URL	Spec source address or template detail link
Last modified	Save time
Actions	See table below

Icon	Condition	Description
Update document	Type url	Re-download OpenAPI JSON from URL and write to site
Authorize	Always	Enter authorization config
Edit	Always	Enter edit Open API

Supports multi-select Delete (openApi·delete); also deletes all authorization records for that definition.

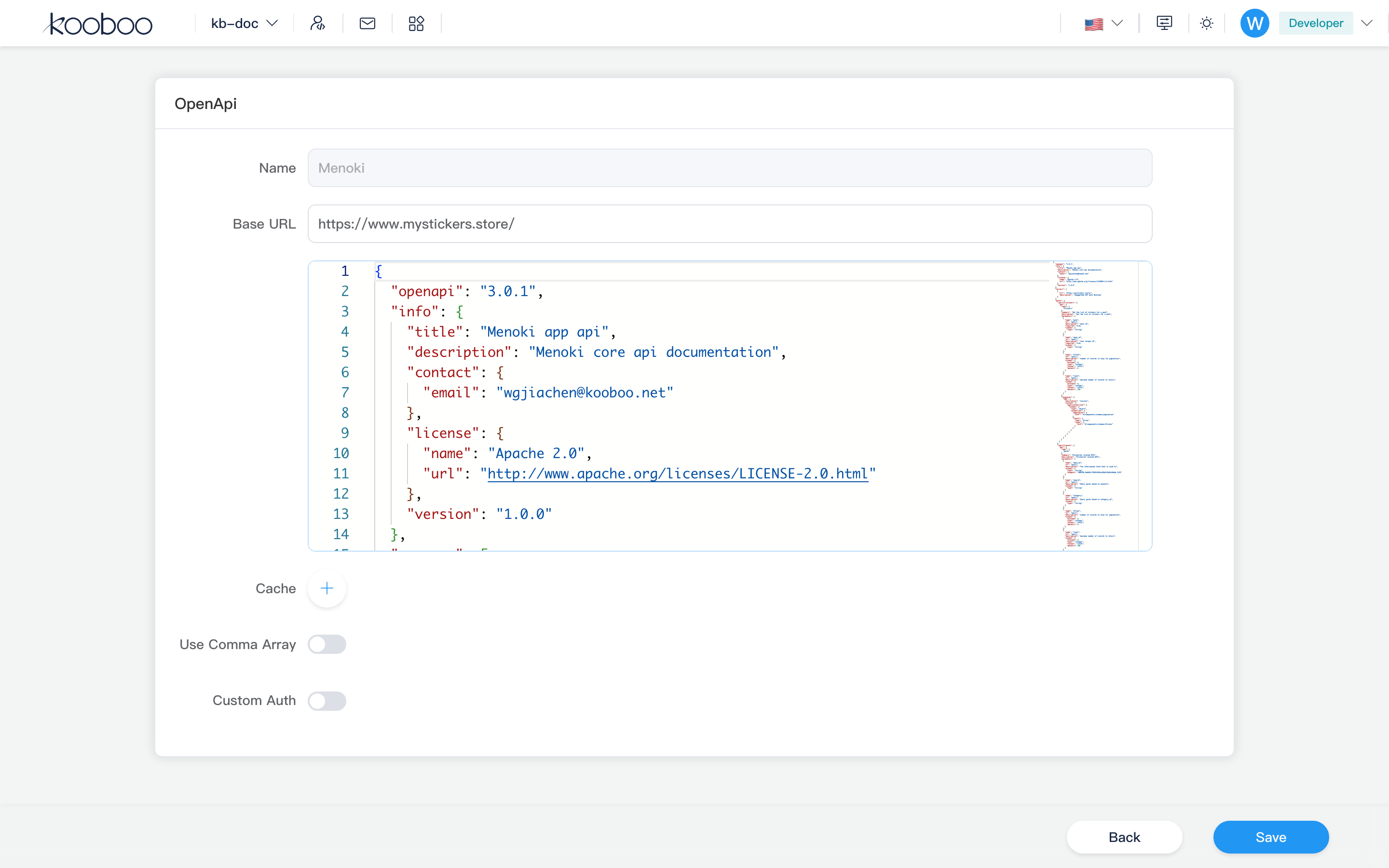

Edit Open API

Path: /_Admin/development/openapi/edit?SiteId=... (new without id; edit with id={OpenApiId})

Footer Save / Return; unsaved leave prompts. New save returns to list.

Common fields

Field	Description
Name	Required, unique, 1–50 chars, letter or digit first; read-only when editing
Base URL	Optional; overrides servers base in spec (absolute HTTP(S) URL)
Cache	Cache responses by HTTP method + path pattern — response cache
Use comma array	Serialize array query params as comma-separated single value (else duplicate keys)
Custom authentication	Toggle shows KScript editor; inject header/query/cookie before request

Custom authentication script can use global request (read-only structure injected at runtime): body, querys, paths, headers, cookies. Example (default editor comment):

// request.headers.Authorization = 'bearer xxxx'
// request.querys.token = 'xxxx'

Types (selectable on create)

Type cannot change after create.

Type	Description

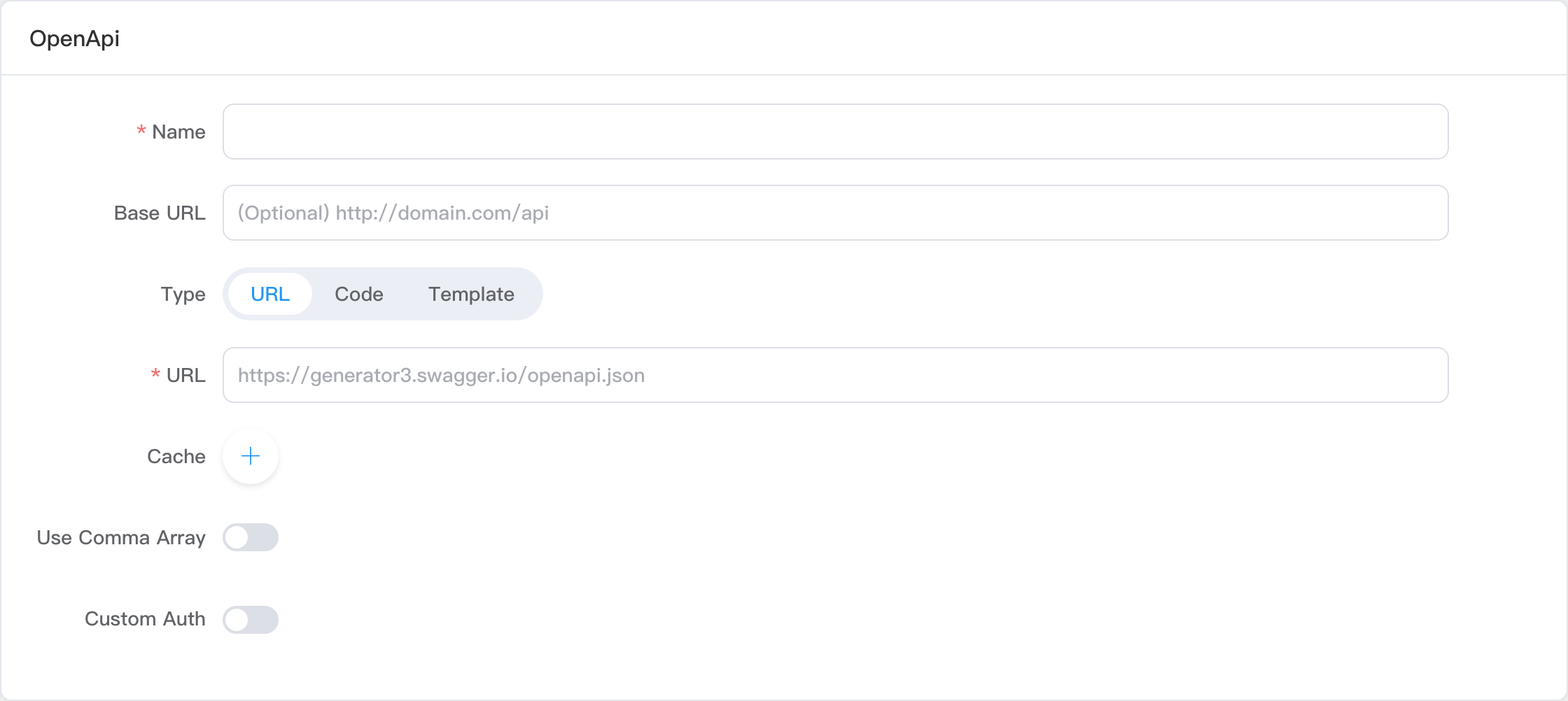

URL	OpenAPI JSON URL (e.g. https://petstore3.swagger.io/api/v3/openapi.json); downloads and normalizes JSON on save

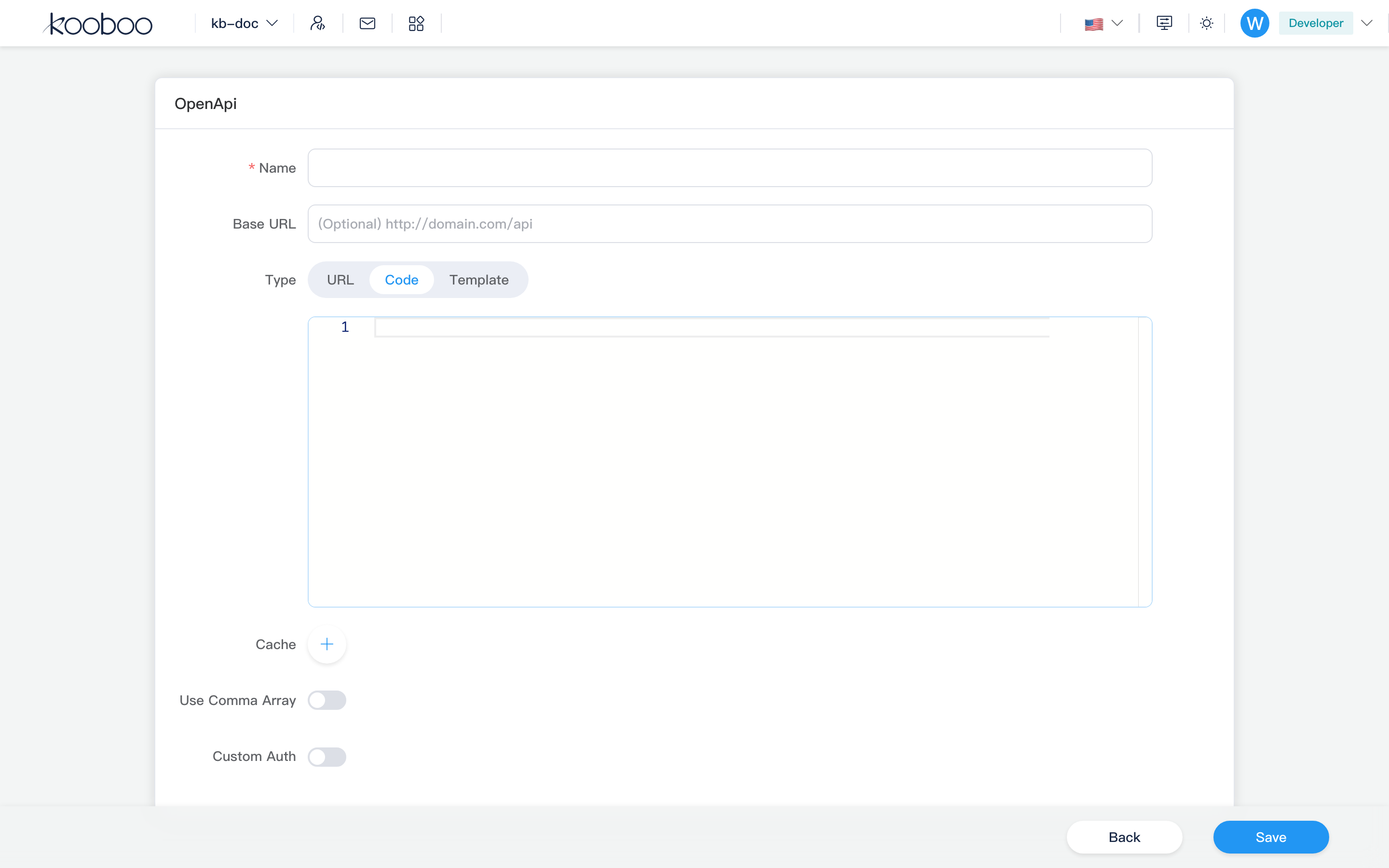

Code	Paste OpenAPI JSON body in Monaco (jsonData)
Template	Pick from Kooboo template library (openapi_template.kooboo.net); auto-fills baseUrl, authUrl, document, optional sample code

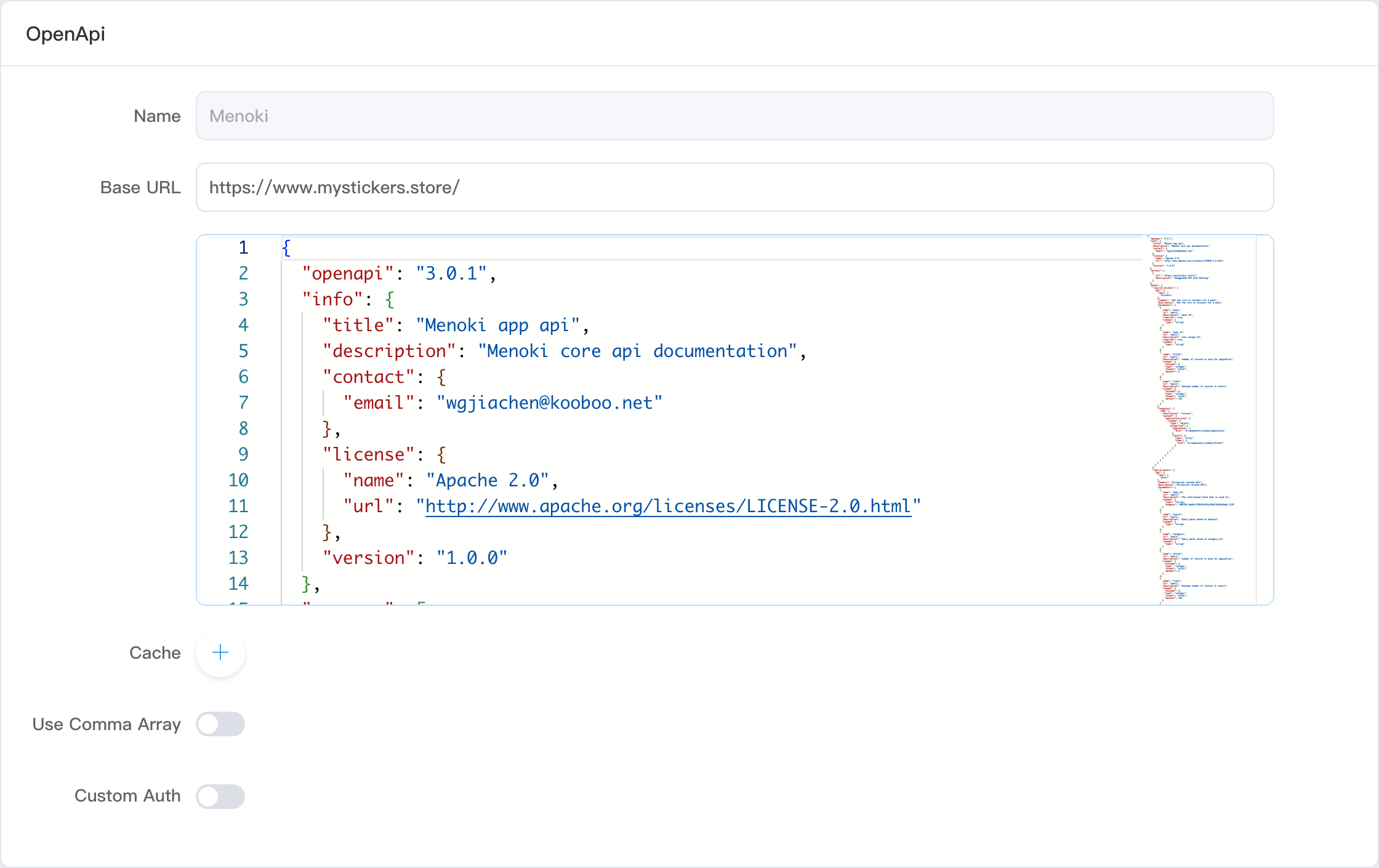

Response cache

Each cache rule:

Field	Description
Method	GET / POST / … / ALL
Path pattern	Fragment matching spec paths (Contains match)
Expiry	Minutes

On cache hit, returns last response from memory until expiry.

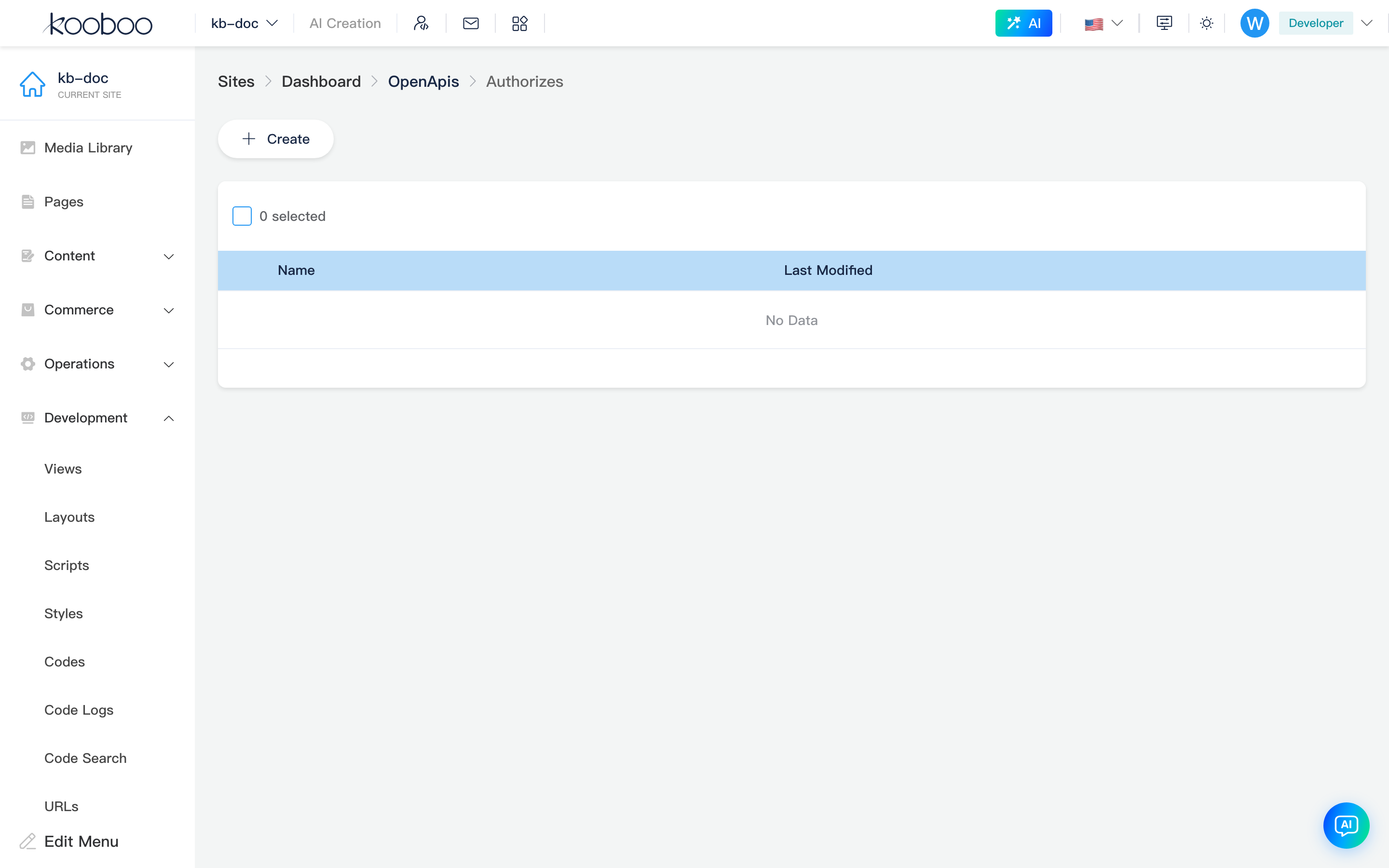

Authorization config

Path: /_Admin/development/openapi/authorizes?SiteId=...&id={OpenApiId}

From list Authorize (lock icon). Breadcrumb: OpenApis → Authorizes.

Maintain multiple authorization names per Open API definition (e.g. production, sandbox), each storing credentials required by spec securitySchemes. Scripts must configure here (or via k.openApi.{name}.authorize) before calling remote APIs, else Api not authorize.

Toolbar

Button	Description
Create	New authorization record

List

Column	Description
Name	authorizeName; which credential set the script uses
Last modified	Save time
Actions	Challenge (OAuth one-click redirect), Edit

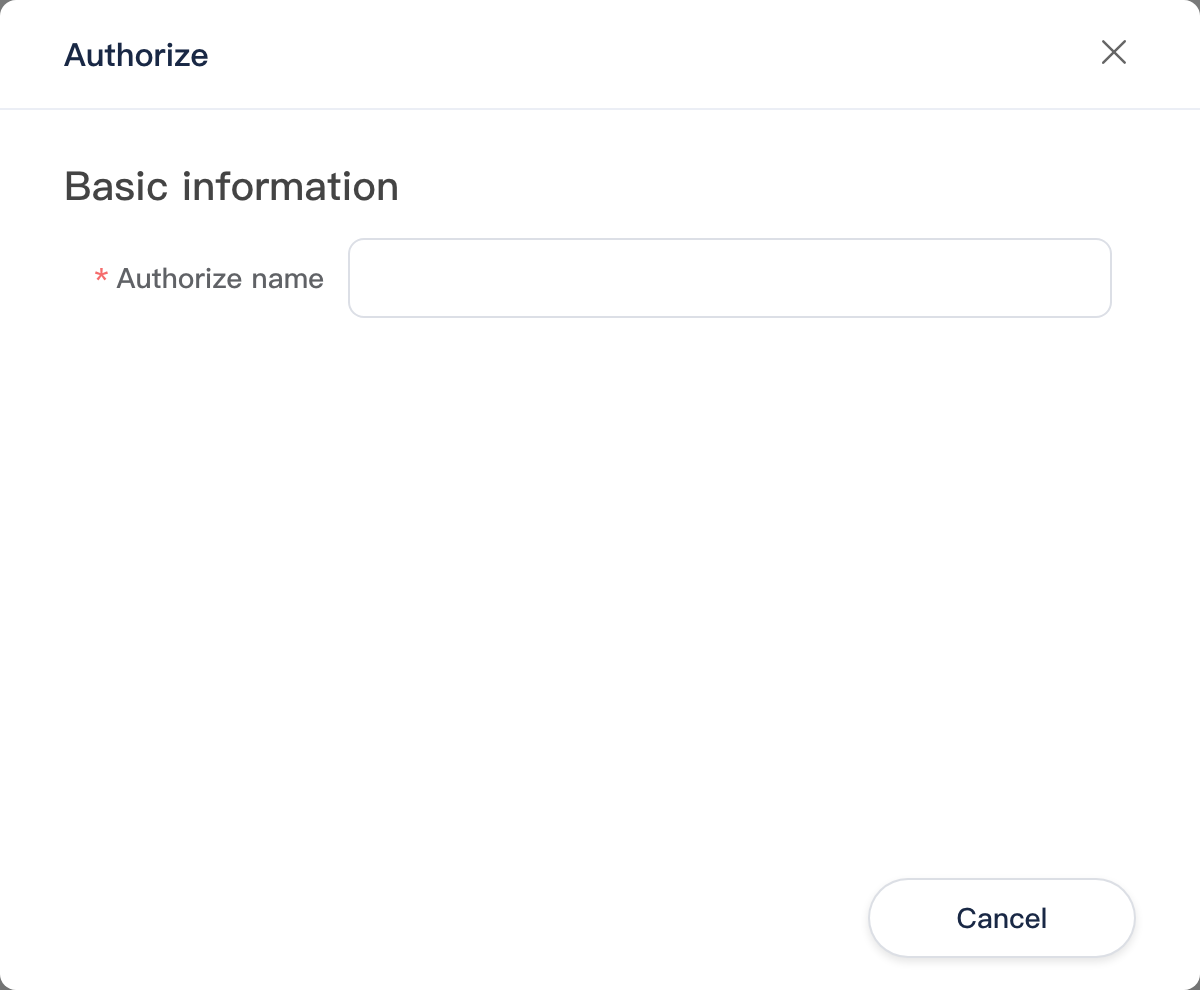

New/edit authorization dialog

Field	Description
Name	Authorization config name (required on create, unique)
Security scheme	Dynamic form from OpenAPI components.securitySchemes

Common credential fields (by scheme type):

Scheme	Fields
HTTP Basic	username, password
Bearer / API Key	accessToken, name (e.g. Bearer prefix)
OAuth2	clientId, clientSecret, accessToken, refreshToken, expiresIn, etc.

Challenge: for definitions with authUrl or OAuth2 authorizationCode flow, opens browser for authorization; callback handled by Kooboo /_api/openapioauth2callback/... or /_api/OpenApi/SaveToken and writes tokens back.

Use in the site

1. Create Open API here and save (ensure valid jsonData).
2. Add at least one credential set in authorization config.
3. Call from server scripts in Layout / Page / Code, for example:

// Name matches admin Name column; operation names in k.openApi API docs
const result = k.openApi.myService.somePath_get({ query: { page: 1 } })

Operation names and parameter shapes match IDE OpenApi types for the site — see k.openApi.

Related

Doc	Description
k.openApi	KScript: call operations, authorize credentials
k.net.httpClient	Generic HTTP client
k.security.jwt	JWT (with Bearer in spec)
Code	This site's API / CodeBlock
Authentication	Inbound request auth (not external API calls)
Development overview	Development group index
