IndexedDB Table Relations

Menu: Database → IndexedDB Table Relations
Deep link: /_Admin/database/table-relation?SiteId={siteGuid}

Table relations declare an association between two IndexedDB tables: specify Table A / Field A, relation type, Table B / Field B, and give the relation a name. After saving, when reading a row from Table A in KScript, you can access related Table B data through the relation name (or in some scenarios the related table name).

Permissions

List and view: tableRelation (view). New relations require tableRelation·edit; multi-select Delete requires tableRelation·delete.

Prerequisites

Both tables must already exist under IndexedDB Tables, and the related fields must exist in Column settings. Tables and fields in dropdowns come from the current site’s IndexedDB table schema.

How to Open

1. In Edit Menu, check Database → IndexedDB Table Relations.
2. Open Database → IndexedDB Table Relations in the left sidebar.

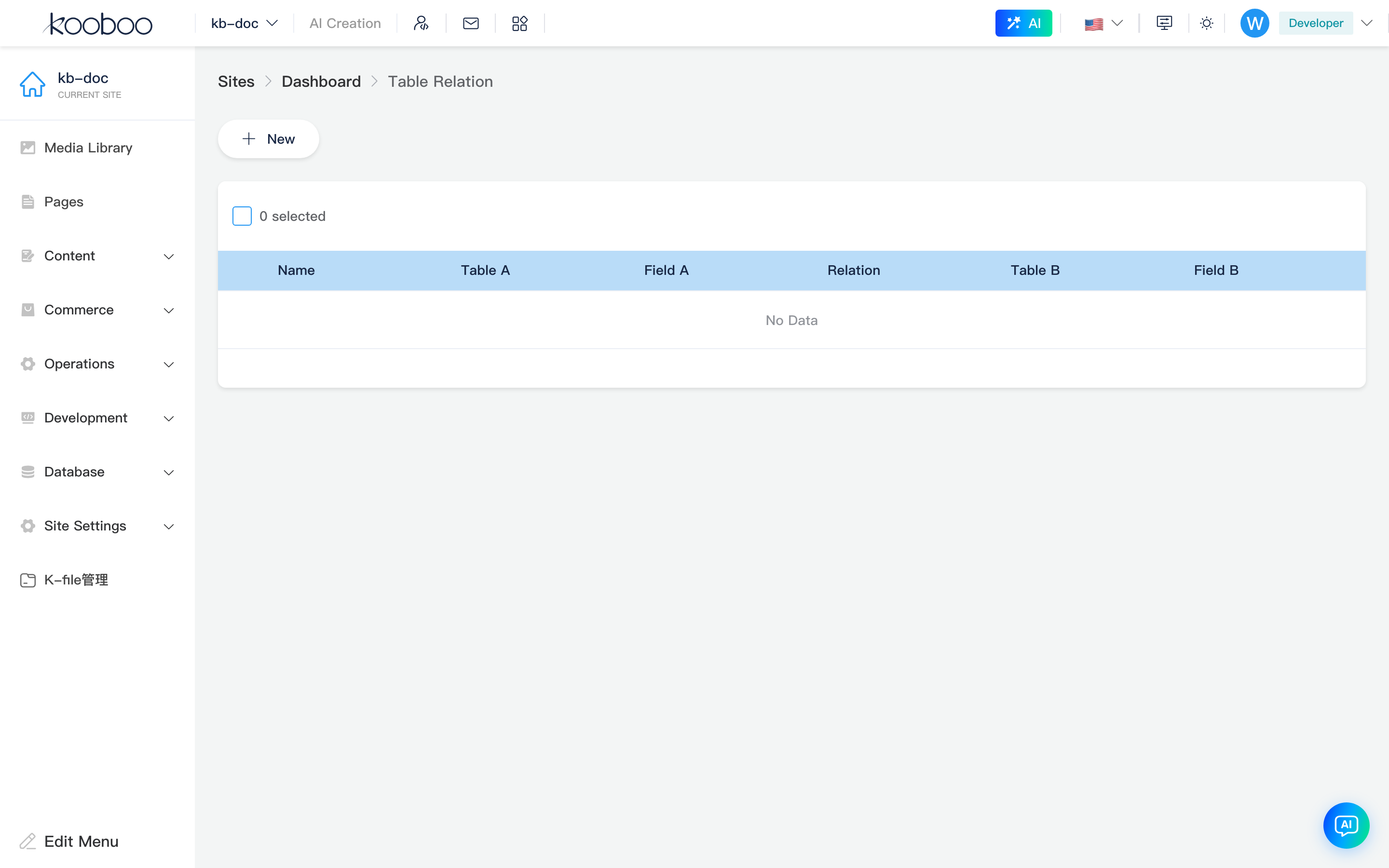

Relation List

Toolbar

Button	Permission	Description
New	tableRelation·edit	Opens the new relation dialog

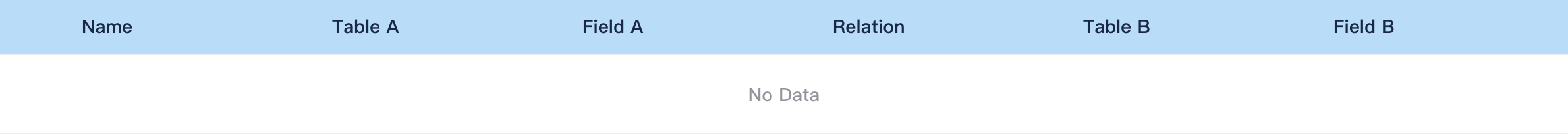

List table

Column	Description
Name	Unique relation name; in scripts often used as the property name on the current table record to access related data
Table A / Field A	Table and field on one side of the relation
Relation	Relation type (one-to-one, one-to-many, many-to-many, many-to-one; UI labels are localized)
Table B / Field B	Table and field on the other side

Supports multi-select Delete. The UI does not provide inline editing; to change a relation, delete and New again (or update via the TableRelation API).

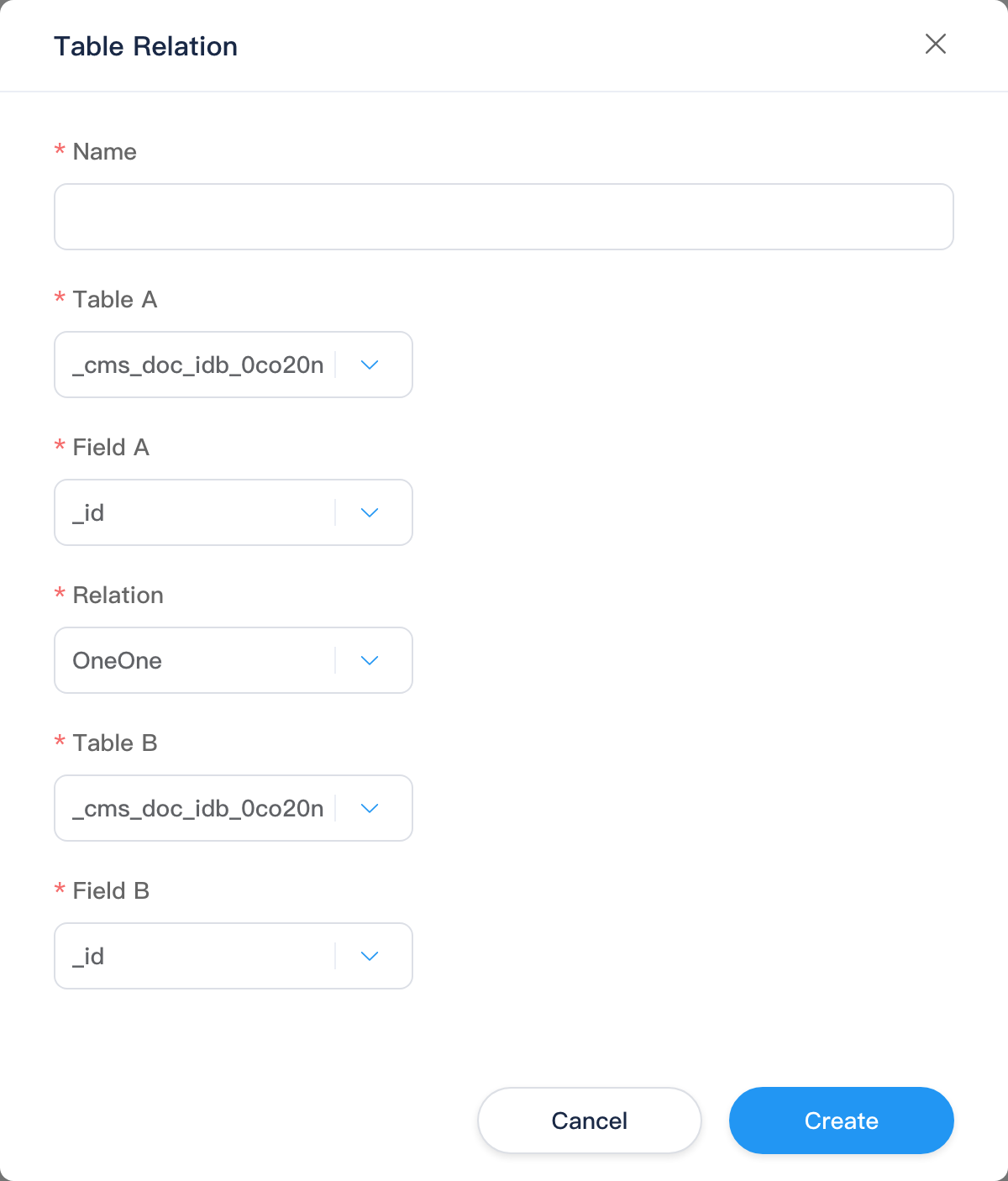

New Relation Dialog

Field	Description
Name	Required; 1–50 characters; unique within the site (prompts if the relation name already exists)
Table A	Select an IndexedDB table
Field A	Field list after Table A is selected
Relation	Relation type: OneOne, OneMany, ManyMany, ManyOne (UI shows localized labels)
Table B	Another IndexedDB table
Field B	Associated field on Table B

After save, calls TableRelation/post to write to the site database; the list refreshes.

Relation type meanings (in use)

Type	Typical meaning	Script expansion (accessing from a Table A row)
One-to-one / many-to-one	One A record maps to one B record	Single related object
One-to-many / many-to-many	One A record maps to multiple B records	Array of related objects

The actual join matches Field A and Field B values (e.g. users.id to orders.userId).

Effect in scripts

Relations do not expose a separate k.* API. After querying an IndexedDB table and getting a dynamic object, use the relation name to read related data:

const user = k.DB.indexedDb.users.get(userId)
// Assume a relation named userOrders: users.id → orders.userId, one-to-many
const orders = user.userOrders

• The access name usually matches the Name entered in the admin.
• One-to-many / many-to-many return arrays; one-to-one / many-to-one return a single object.
• More CRUD details: k.DB.indexedDb.

Typical workflow

1. Prepare Table A, Table B, and association fields under IndexedDB Tables.
2. On this page New a relation with name, both sides’ tables/fields, and type.
3. In Code, get / find the main table record, then read the collection by name.
4. After relation definition changes, update code if it still uses the old name, or delete and recreate the relation.

Related

Doc	Description
IndexedDB tables	Create tables, columns, and data
k.DB.indexedDb	Dynamic objects and queries
Database overview	Database group menu
